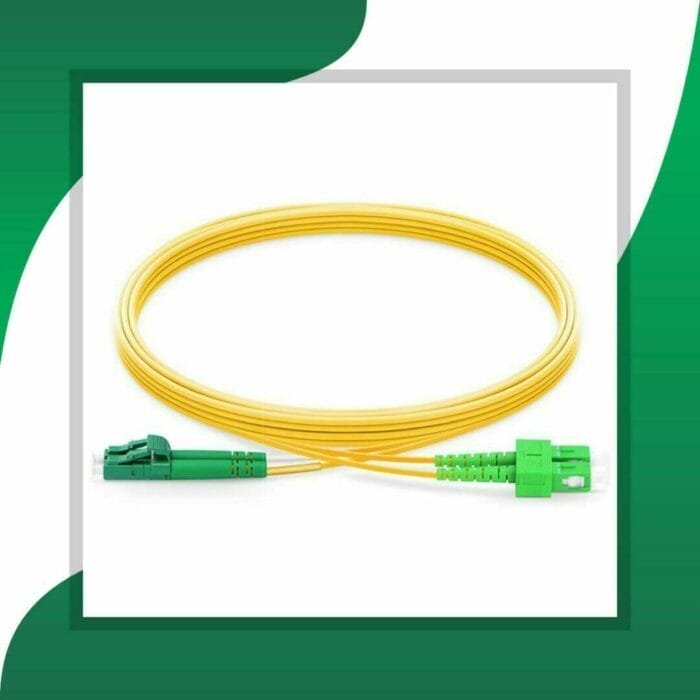

Fiber Optic Patch Cord Single Mode SC-LC-APC Duplex LSZH

TMT Global  Fiber Optic Patch Cord Single Mode SC-LC-APC Duplex LSZH

TMT Global  Patch cables  are manufactured and  tested  in  compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.Fiber Optic Patch Cord Single Mode SC-LC-APC Duplex LSZH

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building Automation Cables and Accessories which leads to satisfaction and Reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality, Reliability, and Efficiency.

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

• Optical Specifications
  Mode type: Single mode / multi mode
  Cable Type: Simplex/Duplex
  Connector Style: SC, FC, ST, LC, MTRJ,
  Polish Type: PC,UPC,APC
  Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
  Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
  Strength Member: Aramid Yarn
  Outer Jacket: LSZH/PVC/OFNR/OFNP
  Interchangeability &Vibration: ≤0.2dB
  Minimum Bend radius: 10 -13mm
  Wavelength: SM:1310/1550nm MM:850nm
  Operating temperature: -40~75°C
  Jacket Color
  Single mode: Yellow / Green, Yellow Blue
  Storage temperature: -45~85°C
  Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
  Fiber type: ITU-T G.652D, G.657A1 /A2

Multi mode OM-2                   Multi mode OM-3        Multi mode OM-4
≤0.3dB                                            ≤0.3dB                               ≤0.3dB
≥30dB                                             ≥30dB                                 ≥30dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
