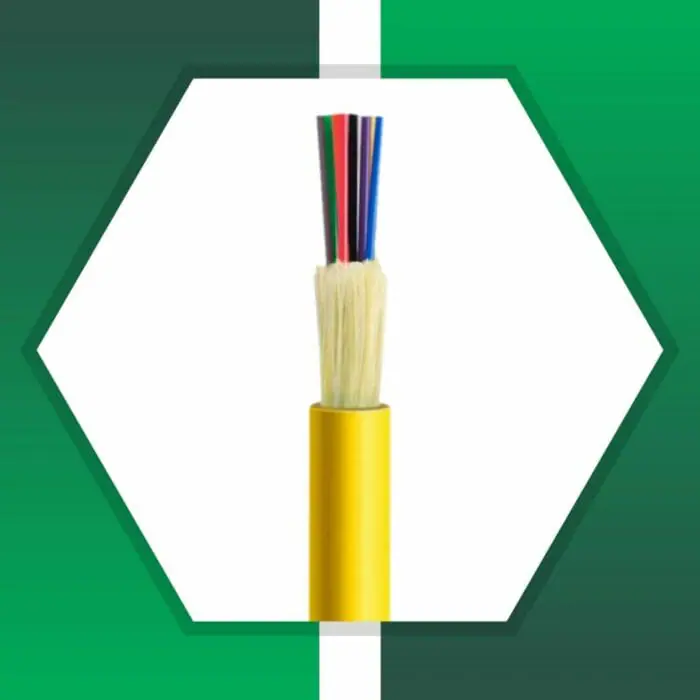

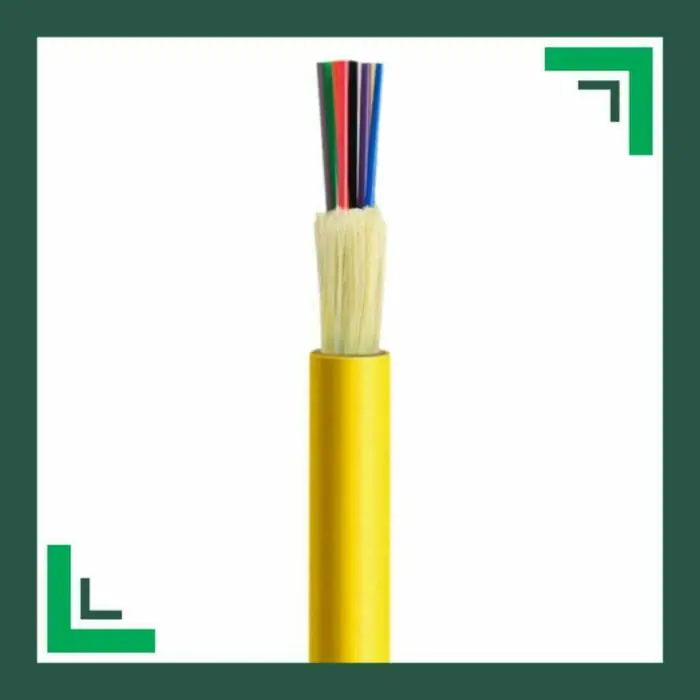

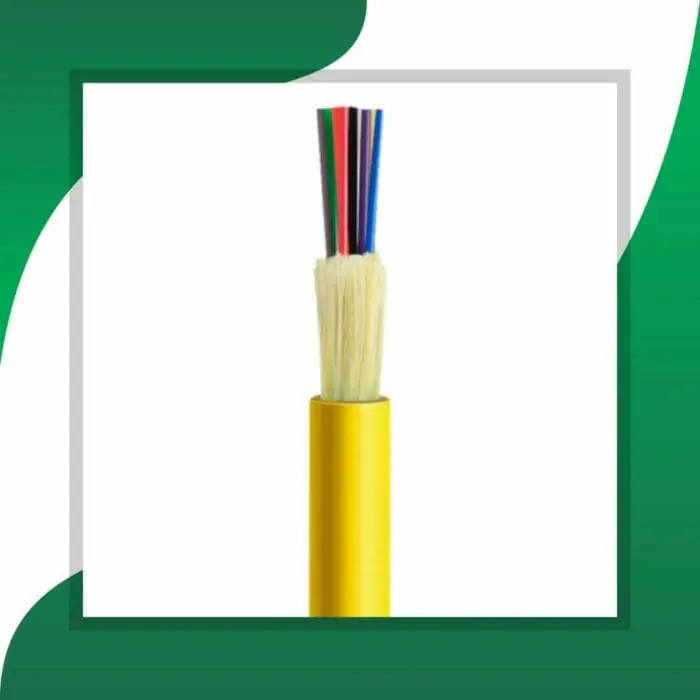

fiber optic cable Multi Core single mode 8core LSZH G.652D

TMT Global  fiber optic cable Multi Core single mode 8core LSZH G.652D

TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability.

All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.fiber optic cable Multi Core single mode 8core LSZH G.652D

PHYSICAL DESCRIPTION

• Products: Fiber optic cable single mode
• Tube Filling Compound: Thixotropic jelly
• Fiber Type: ITU-T G.657A1/A2,G.652D
• Tube material: PBT ( Polybutylene Terephthalate)
• Armored: Corrugated steel tape

Packing Detail
Fiber Count: 6,8,12,24,48,96,128
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 7.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH

Optical Characteristics

Fiber  type                                                   ITU-T G.652D                    ITU-T G.657/A1   ITU-T G.657/A2

Attenuation (max)                                 0.40 dB/km (1310 nm)                                0.40 dB/km (1310 nm)                          0.35 dB/km (1310 nm)

0.25 dB/km (1550 nm)                         0.25 dB/km (1550 nm)                                0.22 dB/km (1550 nm)

MFD                                                          9.0±0.4 μm (1310 nm)                                   9.0±0.4 μm (1310 nm)                          8.6 ± 0.4 μm (1310 nm)

10.1±0.5 μm (1550 nm)                         10.1±0.5 μm (1550 nm)

Cladding diameter                                   125 ± 0.3 μm                                                   125 ± 0.7 μm                                          125 ± 0.7 μm

Core/Clad Concentricity error              ≤ 0.5 μm                                                           ≤ 0.5 μm                                                 ≤ 0.5 μm

Zero dispersion wavelength                   1300nm≤ ≤1324nm                                       1300nm≤ ≤1324nm                            1302nm≤ ≤1322nm

Cladding non-circularity                         ≤ 0.7 %                                                             ≤ 0.7 %                                                    1%

Coating diameter                                       245 ± 10 μm                                                    242 ± 7 μm                                            240 ± 5 μm

Cut Off Wavelength                                  ≤ 1260nm                                                        ≤ 1260nm                                               ≤ 1260nm

Proof Test                                                   ≥ 1% (100kpsi or 0.7GPa)                             ≥ 1% (100kpsi or 0.7GPa)                   ≥ 1% (100kpsi or 0.7GPa)

Macro bending Attenuation : (10 turn on a 15 mm radius mandrel)                         ≤ 0.25 dB @1550 nm                           ≤ 0.5dB @1550 nm
