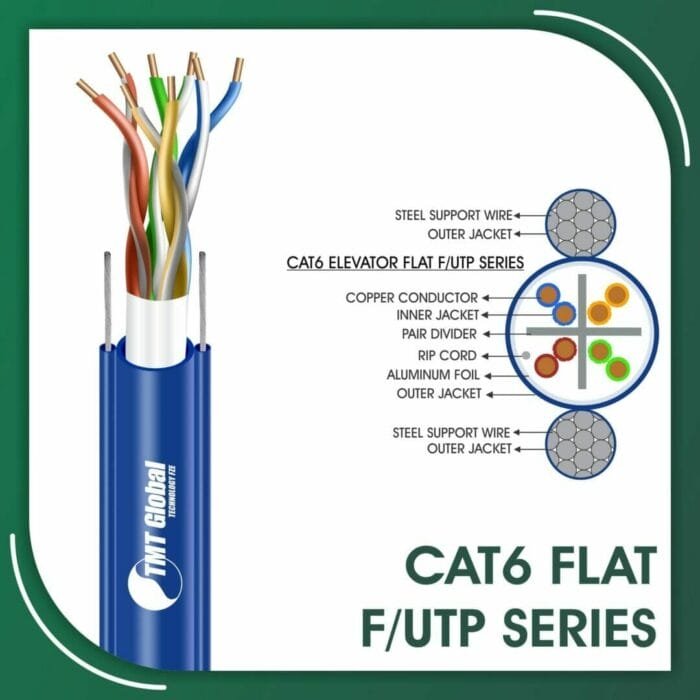

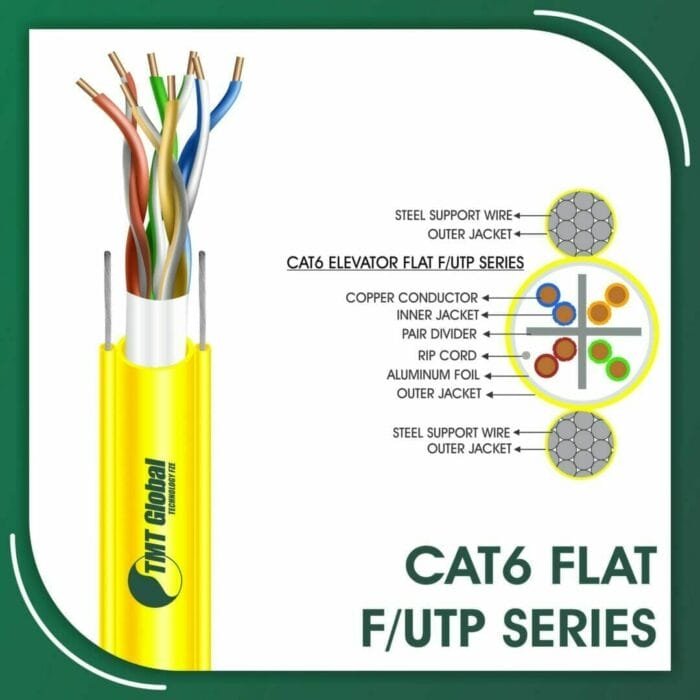

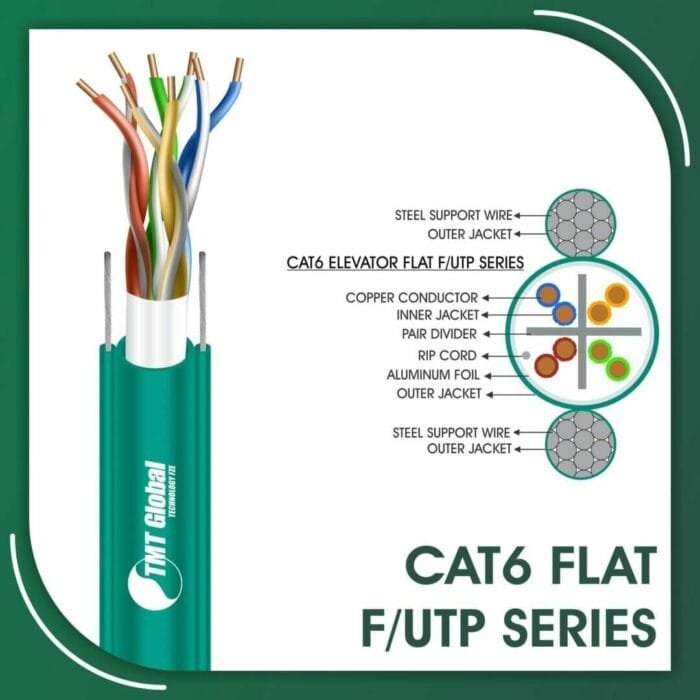

TMT Global cat6 f-utp lift flat cable 23awg 4pair
TMT Global aims Cat6 Network Cable 23awg pair F-UTP Flat Cable 305m to provide
the best quality products r Structured Cabling Systems Copper
And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems
Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions
SMATV Systems Audio Video Intercom Systems Cat6a Cable 23awg 4 twisted pair U-UTP Elevator Cable 305m
PHYSICAL AND MECHANICAL PROPERTIES | |
Basic Conductor | Bare Copper |
Conductor Size | 23awg |
Insulation | HDPE |
Number Of Insulated Conductors | 8, Twisted In 4 Pairs |
Color Code Of Pairs | Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown |
Outer Jacket | PVC |
Standard Jacket Color | Gray/Blue/Black |
Standard Surface Marking | Includes TMT GLOBAL P/N, Cable Description, Meter Mark And Batch Number |
Pulling Force | 100 N MAX |
Short Term Bend Radius | 6xOD (Mm) |
Storage Temperature | -20 To +80C |
Temperature Operating Range | -20 To +60C |
Installation Temperature Range | 0 To +50C |
Flame Test | I236MEA-450x450.jpg 450w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-300x300.jpg 300w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-600x600.jpg 600w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-1024x1024.jpg 1024w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-150x150.jpg 150w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-768x768.jpg 768w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-1536x1536.jpg 1536w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-2048x2048.jpg 2048w, https://amss.store/wp-content/uploads/2023/01/6X236MEA-96x96.jpg 96w, https://amss.store/wp-content/uploads/2023/01/6X236MEA.jpg 1080w" data-image-id="10">
Black
Blue
Gray
Green
Orange
Red
Violet
white
Yellow
Aqua Cat6 Cable 23awg pair F-UTP Flat Elevator Cable 305m Black
SKU:
6X236MEB-1
د.إ 380.00 |
