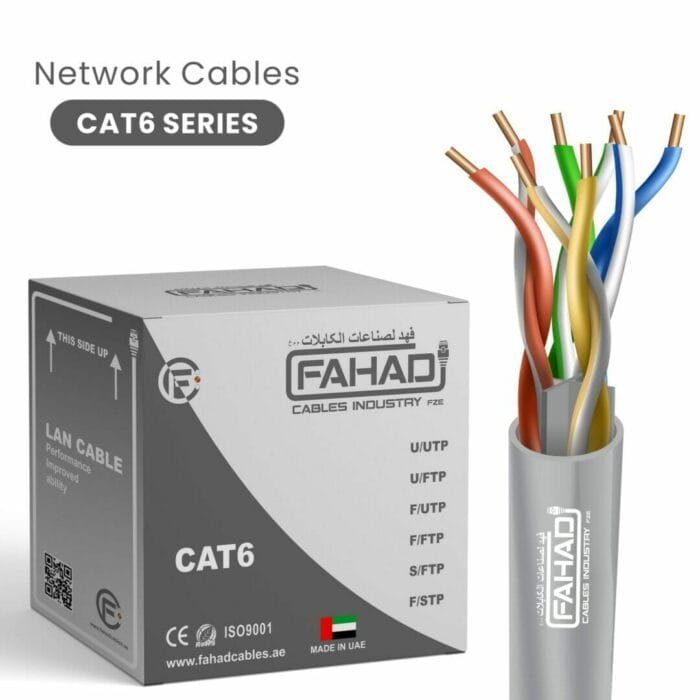

cat6 network cable 23awg Grey U-UTP cable 305m

(1 customer review)

د.إ 280.00

Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: PVC
Jacket Color: Blue/Black/Grey/Violet/Orange/White/Red/Green/Aqua/Yellow
Packing: 305m / Box
Item Code: 6X136BPG-FCI

0 People watching this product now!
Description

TMT Global  cat6 network cable 23awg 4pair U-UTP cable 305m

Fahad Cables Industry FZE aims to provide the best quality products r Structured Cabling Systems Copper range Category6 Unshielded Twisted Pair. Cat6 23awg 4pair U-Utp Series 305m Aqua Color. cat6 u/utp Cable Cat6 U/UTP LSZH Cable Cat6 Outdoor Series Cable Cat6.cat6 network cable 23awg Grey U-UTP cable 305m

cat6 network cable 23awg Grey U-UTP cable 305m

  • PHYSICAL AND MECHANICAL PROPERTIES
  • Basic Conductor: 23AWG, Bare copper
  • Insulation: HDPE
  • Number of insulated conductors: 8, twisted in 4 pairs
  • Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
  • Outer Jacket: PVC
  • Standard Jacket Color: Blue/Gray /Black
  • Standard Surface Marking: Includes FAHAD CABLES P/N, cable description, Meter mark and Model Number
  • Pulling force: 100 N max
  • Short Term Bend Radius: 6xOD (mm)
  • Storage Temperature: -20 to +80C
  • Temperature operating range: -20 to +60C
  • Installation temperature range: 0 to +50C



  • ELECTRICAL SPECIFICATIONS
  • Characteristic Impedance : 100±6 Ohm @ 1-250 MHz

Loop Resistance:25

Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/m max. @ 1 KHz.
Voltage rating : 72 Vdc max.

Dielectric strength :  1500 Volts/1 minute min rms

Velocity of Propagation (NVP): 67-69%

Propagation Delay: 534 + 36/vf. nS/100m max @ 1-500 MHz

Propagation Delay Skew: 45 nS/100m max @ 1-500 MHz

Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
