Cat6 23awg 4 twisted pair U-UTP Outdoor 305m
د.إ 310.00
Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)
General Specification:
Conductor: BARE Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: PVC
Jacket Color: Black/Grey/Violet/Orange
Packing: 50M / 100M / 200M
Item Code: 6X131BDB

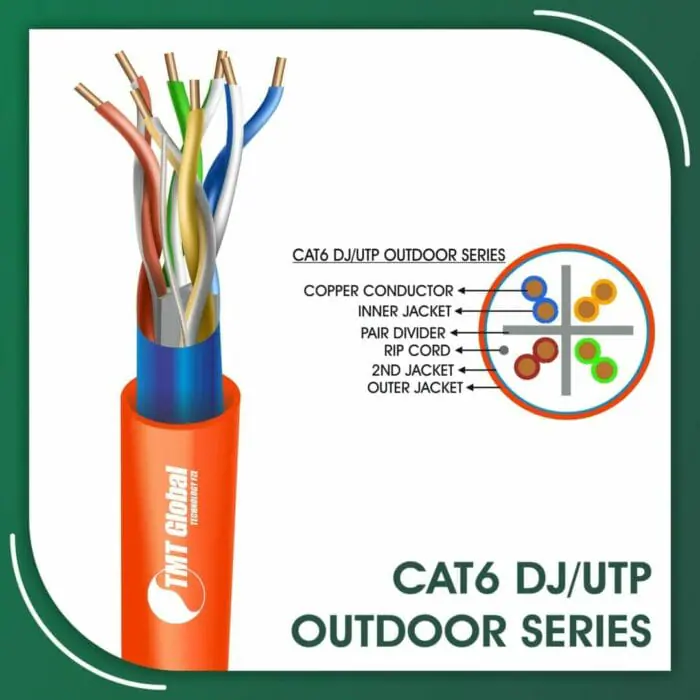

TMT Global Cat 6 23awg 4 twisted pair U-UTP Outdoor Double Jacket 305m
TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability. All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.Cat6 23awg 4 twisted pair U-UTP Outdoor 305m
| PHYSICAL AND MECHANICAL PROPERTIES | |
| Basic Conductor | BARE Copper |
| Conductor Size | 23AWG |
| Insulation | HDPE |
| Number Of Insulated Conductors | 8, Twisted In 4 Pairs |
| Color Code Of Pairs | Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown |
| Outer Jacket | PVC |
| Standard Jacket Color | Gray/Blue/Black |
| Standard Surface Marking | Includes TMT GLOBAL P/N, Cable Description, Meter Mark And Batch Number |
| Pulling Force | 100 N MAX |
| Short Term Bend Radius | 6xOD (Mm) |
| Storage Temperature | -20 To +80C |
| Temperature Operating Range | -20 To +60C |
| Installation Temperature Range | 0 To +50C |
| Flame Test | IEC 60332-1 |
| ELECTRICAL SPECIFICATIONS | |||
| Characteristic Impedance | 100―6 Ohm @ 1-100 MHz | Dielectric Strength | 1500 Volts/1 Minute Min Rms |
| DC Resistance | 93 Ohm/Km Max. | Velocity Of Propagation (NVP) | 67-69% |
| Resistance Unbalance | 2% Max. | Insulation Resistance | 5000 Mega Ohm•Km Min. @ 500 Vdc |
| Mutual Capacitance | 5.6 NF/100m Max. @ 1 KHz | Coupling Attenuation | IEC 61156-5 TYPE III |
| Cap. Unbalance (Wire To Ground) | 1500 PF/Km Max. @ 1 KHz. | ||
| Voltage Rating | 72 Vdc Max. | ||
| tmt global Color |
tmt global Aqua Color ,tmt global Black Color ,tmt global Blue Color ,tmt global Gray Color ,tmt global Green Color ,tmt global Orange Color ,tmt global Red Color ,tmt global Violet Color ,tmt global white Color ,tmt global Yellow Color |
|---|---|
| Brand |
TMT GLOBAL |
