Cat6a Network Cable 23awg F-UTP Elevator Traveling Cable 305m

Rated 5.00 out of 5 based on 1 customer rating

د.إ 540.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea)

General Specification:

Conductor: Bare Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: LSZH
Jacket Color: Black/Grey/Violet/Orange
Packing: 305M
Item Code: 6A237BEB

0 People watching this product now!

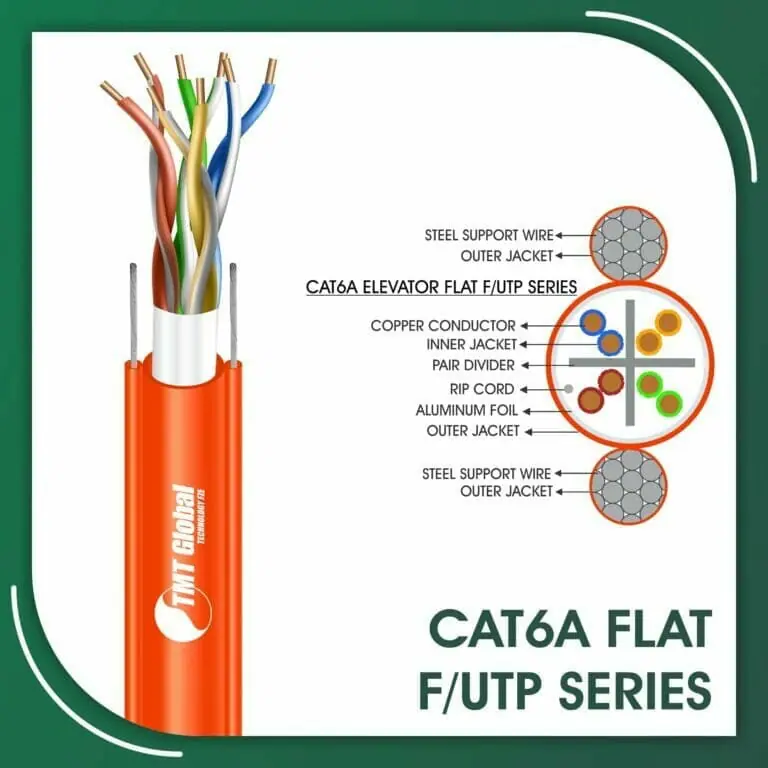

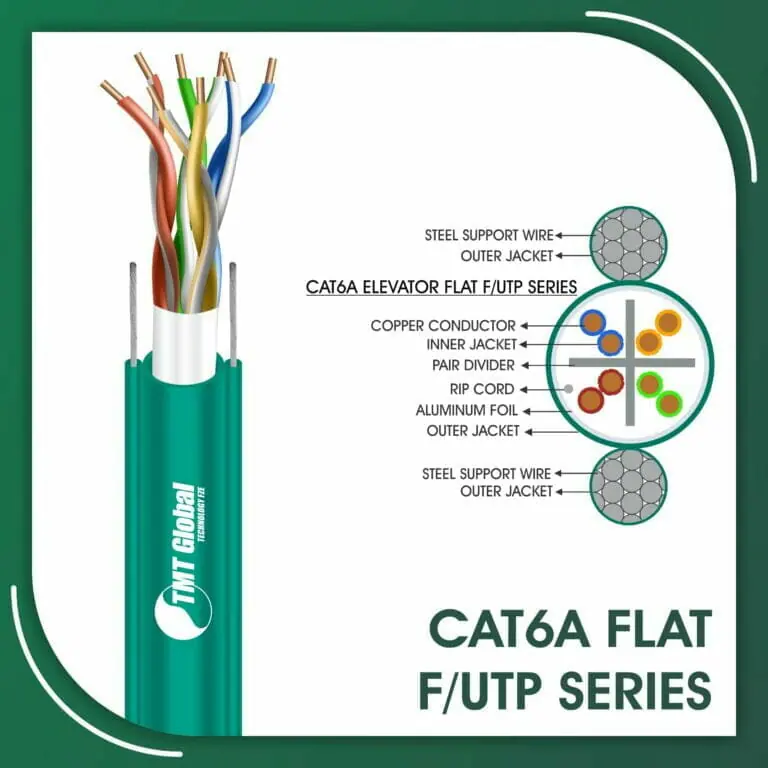

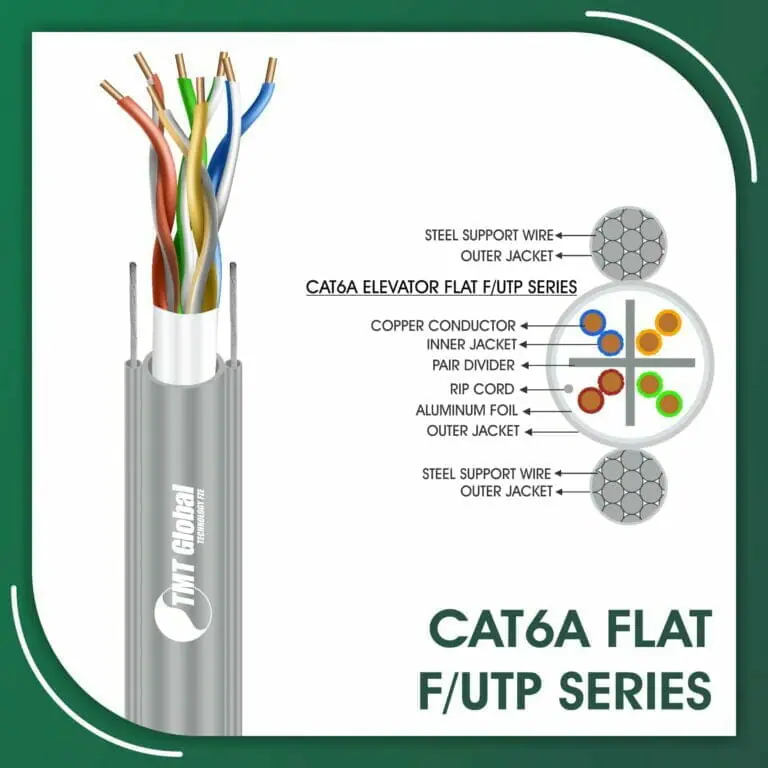

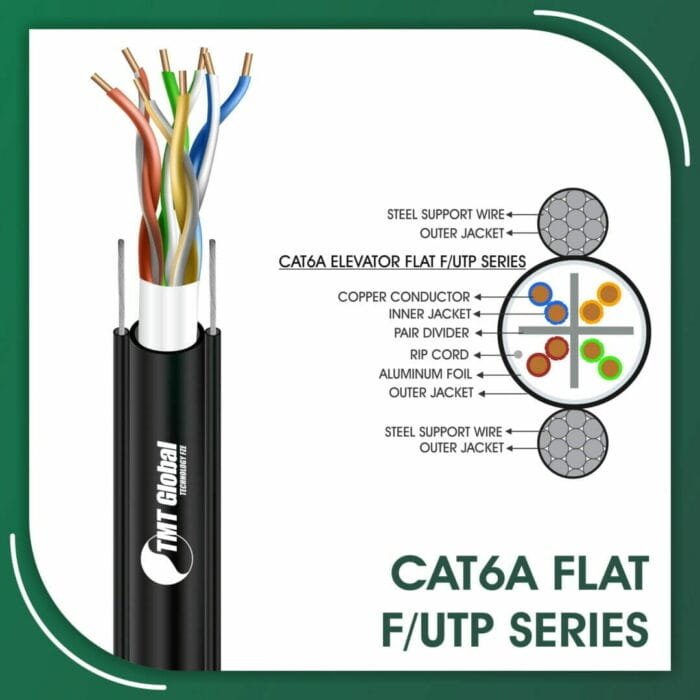

TMT Global cat6a f-utp lift flat cable series 23awg 4pair

TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability.

All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.Cat6a Network Cable 23awg F-UTP Elevator Traveling Cable 305m

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor	Bare Copper
Conductor Size	23awg
Insulation	HDPE
Number Of Insulated Conductors	8, Twisted In 4 Pairs
Color Code Of Pairs	Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown
Outer Jacket	LSZH
Standard Jacket Color	Gray/Blue/Black
Standard Surface Marking	Includes TMT GLOBAL P/N, Cable Description, Meter Mark And Batch Number
Pulling Force	100 N MAX
Short Term Bend Radius	6xOD (Mm)
Storage Temperature	-20 To +80C
Temperature Operating Range	-20 To +60C
Installation Temperature Range	0 To +50C
Flame Test	IEC 60332-1

ELECTRICAL SPECIFICATIONS
Characteristic Impedance	100―6 Ohm @ 1-100 MHz	Dielectric Strength	1500 Volts/1 Minute Min Rms
DC Resistance	93 Ohm/Km Max.	Velocity Of Propagation (NVP)	67-69%
Resistance Unbalance	2% Max.	Insulation Resistance	5000 Mega Ohm•Km Min. @ 500 Vdc
Mutual Capacitance	5.6 NF/100m Max. @ 1 KHz	Coupling Attenuation	IEC 61156-5 TYPE III
Cap. Unbalance (Wire To Ground)	1500 PF/Km Max. @ 1 KHz.
Voltage Rating	72 Vdc Max.
